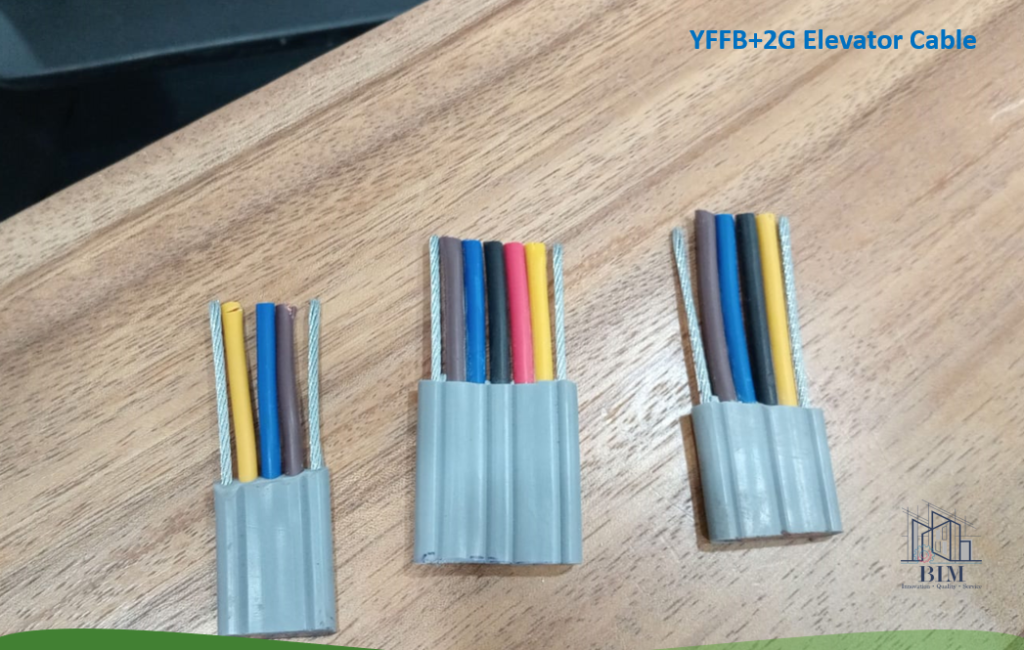

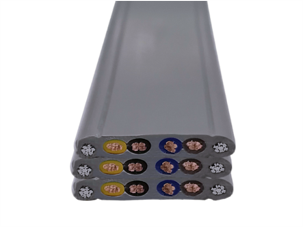

YFFB+2G Elevator Cable

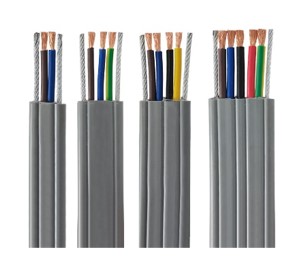

Oxygen Free Copper

The conductor is made of multiple strands of fine oxygen free pure copper twisted together, with strong softness and toughness, and stable transmission.

Low Eccentricity

Layer by layer inspection ensures product quality, uniform insulation thickness, prevents current breakdown, and has a long service life.

Special Elastic PVC

The product has the characteristics of wear resistance, tensile strength, flame retardancy, anti-corrosion, high and low temperature resistance, and bending resistance of 15 million times.

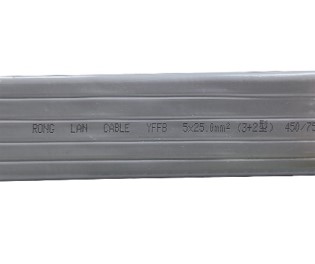

Clear Printing on The Thread Body

Using a precision inkjet printer, the meter count is accurate, and the wire body is printed with brand, model, specification, and execution standards. Each meter of cable has a meter count mark.

Aplication Area:
  1. Elevators
  2. Overhead Cranes
  3. Gantry Cranes
  4. Dump Trucks
  5. Drag Chain Systems
  6. Logistics Conveying Systems

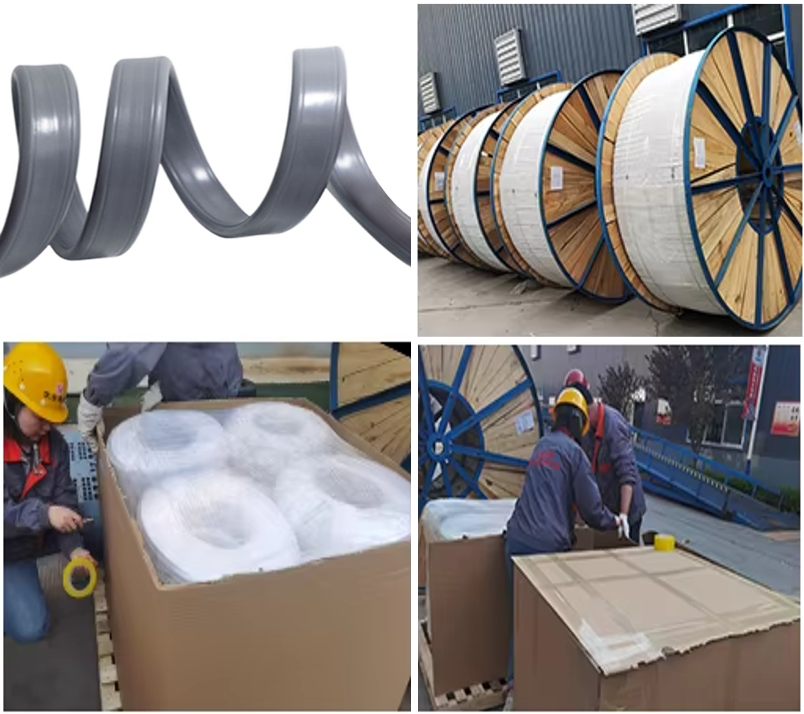

Advantage:
  1. High Grade Product Service life with more than 15 million times bending resistance, wear resistance, flame retardant, oil resistance, corrosion resistance, corrosion resistance temperature resistance -30℃-105℃ Fill double wire to increase tensile strength cable. Circles time 5.000.000
  2. Professional after-sales Service
  3. Have international CE, 3C certification
  4. Big manufacturer, trustworthy, supply demand to Europe & USA
    Fast delivery (within 50,000 meters, 7-10 days)
Elevator (Air Conditioner) Power Cord

Specifications : 60277 IEC 71f(TVVB) 3*2.5mm2
Rated Voltage : 300/500V

Accompaying Elevator Signal Control Wire

Specifications : 71f(TVVB) 24*0.75mm2
Rated Voltage : 300/500V

High-Speed Elevator (Air Conditioner) Power Cord

Specifications : 60227 IEC 71f(TVVB)(G) 3*2.5mm2
Rated Voltage : 300/500V

Accompaying High-Speed Signal Control Wire

Specifications : 71f(TVVB) 24*0.75mm2
Rated Voltage : 300/500V

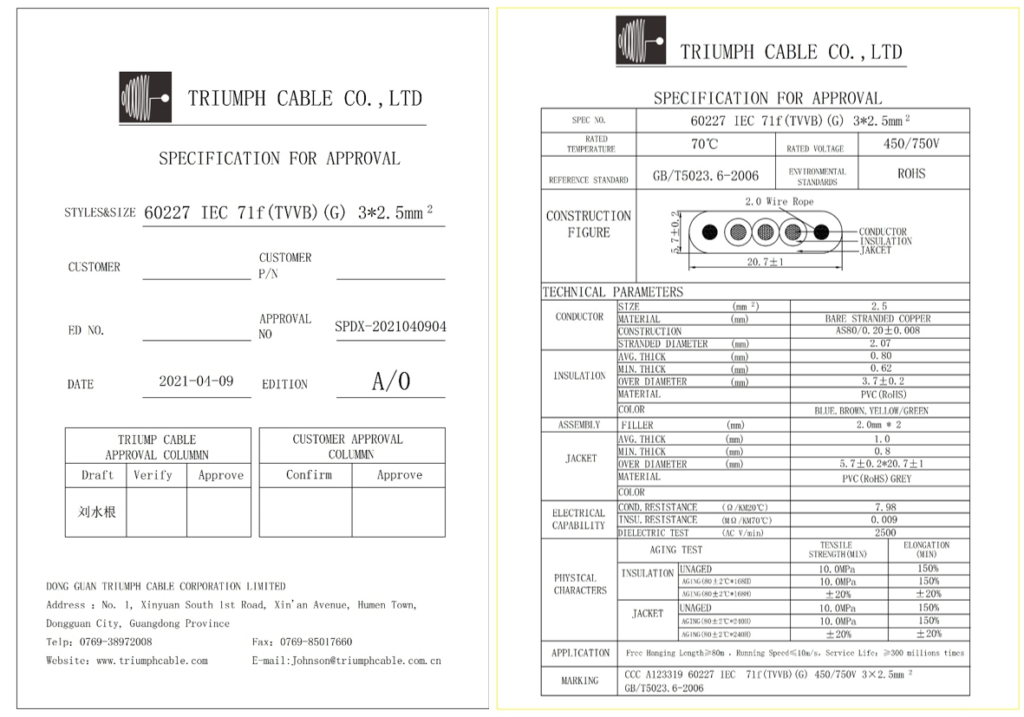

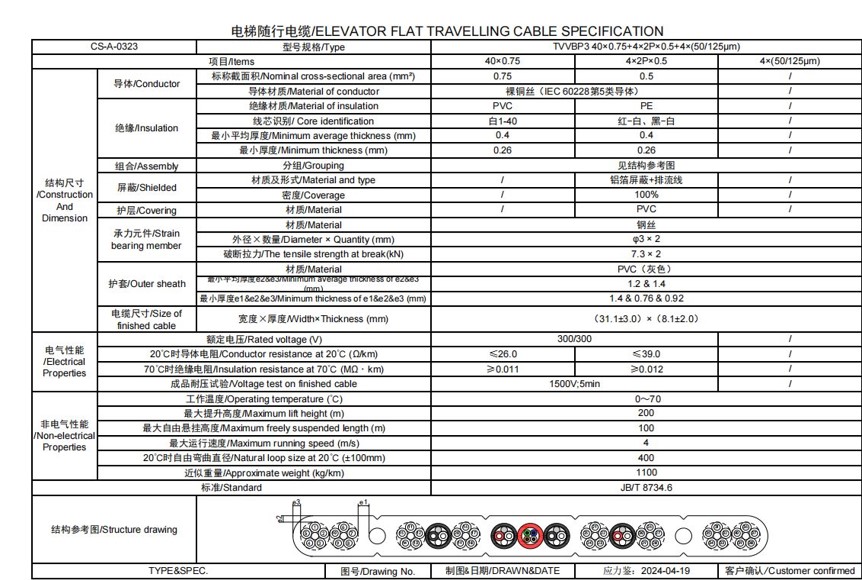

Elevator Flat Travelling Cable Spesification
