Elevator Rope

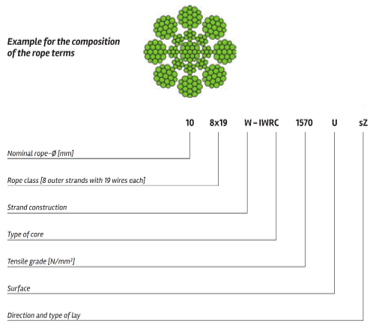

Type of Core :

  • FC Fibre Core
  • NFC Natural Fibre Core
  • SFC Synthetic Fibre Core

Surface :

  • U Ungalvanized
  • B Galvanized (class B)

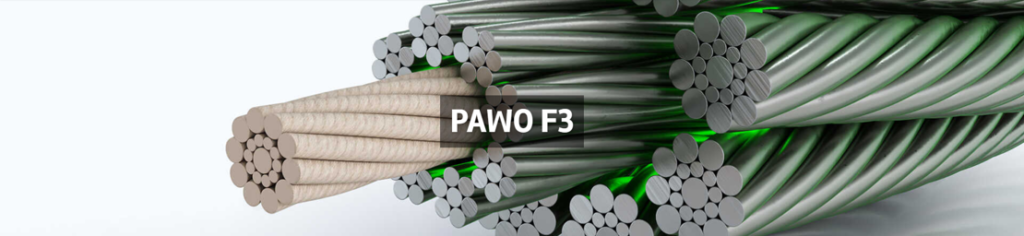

PAWO F3

Special Rope With Steel-reinforced Fiber Core For Elevators

For many years our elevator rope works standard PAWO F3 has a proven history in many types of traction elevator applications. The outer strands are designed in Seale construction. The 9 thicker wires of the outer strand layer offer a higher wear resistance.
The rope is primarily used where the service life is more defined by wear due to contact with the traction sheave than by rope fatigue due to bending. Deformations of the rope cross-section can be greatly reduced. The fiber content in the core of the steel wire rope works as a lubricant reservoir.

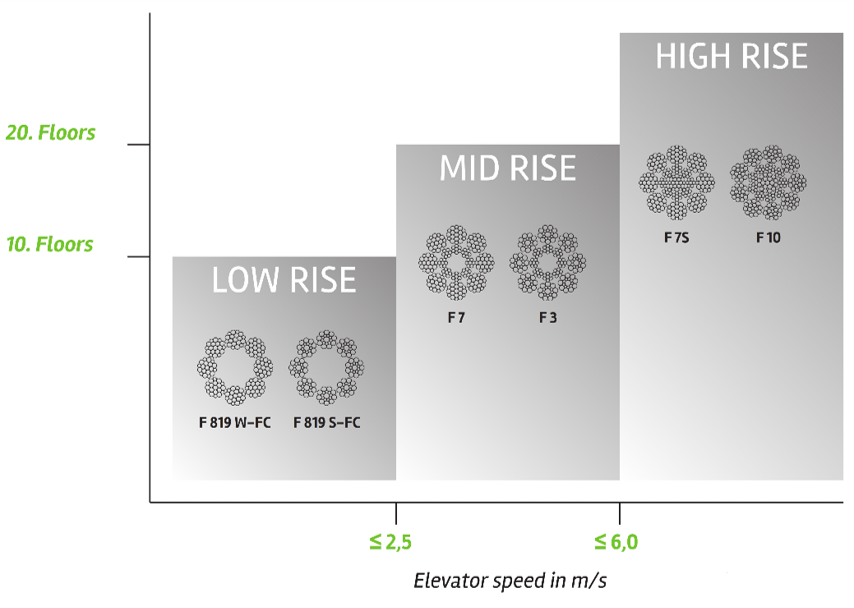

  • Low And Mid-rise
  • Small To Intermediate Number Of Bending Cycles
  • Normal To Heavy Usage Levels
  • Wear-resistant
  • Low Elongation
  • Extended Service Life

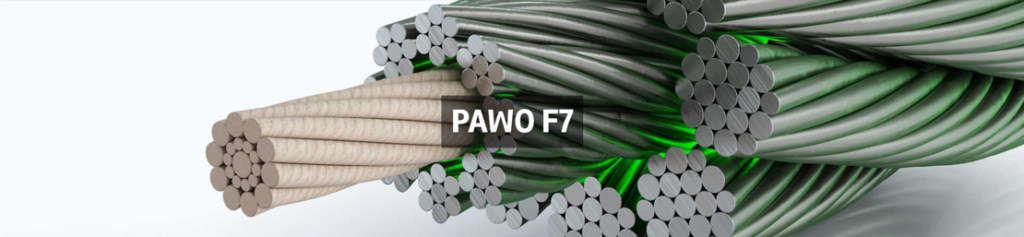

PAWO F7

Special Rope With Steel Reinforced Core

As a result of additional technical development of the PAWO F3 we have added the PAWO F7 rope to our product offerings. The outer strands are designed in Warrington construction. This type is mainly used in installations where rope service life is more defined by the amount of permanent bends on traction/deflection sheaves than by wear of the outer wires.
As with the type PAWO F3, the steel-reinforced fibre core has good elongation properties and prevents the deformation of the cross-section while the rope passes over the traction sheave or the deflection sheave.

Properties

  • Small To Intermediate Number Of Bending Cycles
  • Normal To Heavy Usage Levels
  • Low Stretch
  • Extended Service Life

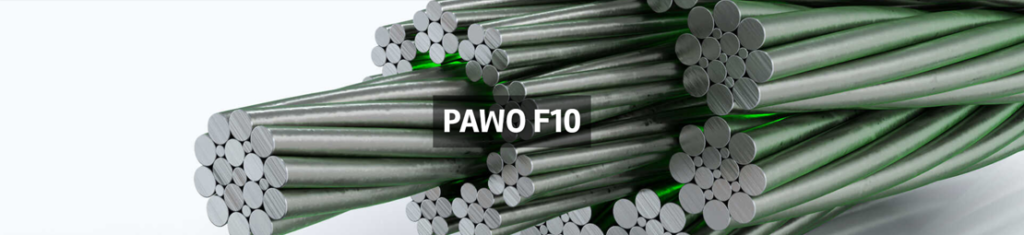

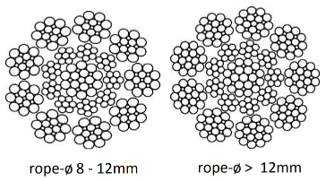

PAWO F10

Special Full Steel Rope With 9 Outer Standars

Our specially developed PAWO F10 is for the most demanding elevator installations. The rope´s 9 strand construction allows a tight fit of the rope in the groove.
Thus, this rope offers an extremely long service life, combined with an increased bending resistance. The compact structure of the core offers additional metallic cross-section.

Properties

  • High Rise
  • High Number Of Bending Cycles
  • Heavy Usage
  • Low Stretch
  • Long Service Life

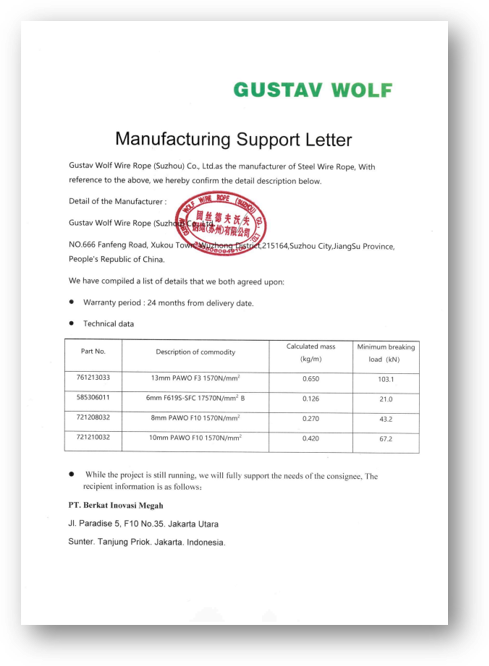

Manufacturing Support Letter
