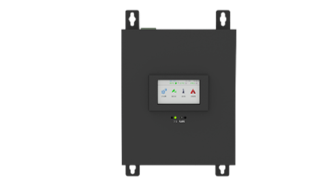

Active Harmonic Filter (AHF)

Active Harmonic Filter (AHF) is a tool for filtering harmonic currents produced by non-linear loads. In addition to compensating for harmonic currents, it can also compensate for reactive power and imbalance. AHF (Active Harmonic Filter) obtains the current signal from the load by CT, separating the harmonics with intelligent FFT (Fast Fourier Transform). DSP (Digital Signal Processing) sends PWM signals to the internal IGBT. AHF will generate compensation current with the same value but opposite phase as system harmonics to achieve real-time dynamic filtering function.

Function :
• Reduces THD I to < 5 %
• Phase Current Balancing
• Reduces Neutral Current
• Improve Cos phi / power factor
• Improve Power Quality

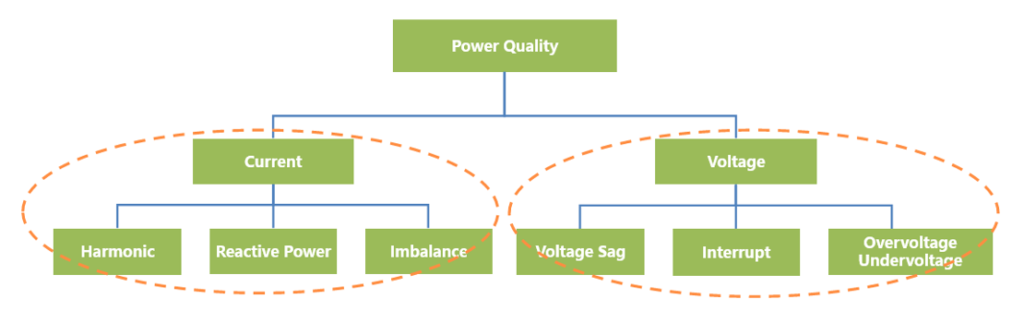

Power Quality Solution

AHF SVG
AVC, PCS, LVR

Our Production Line

Production Capacity :  500 Pcs / Day

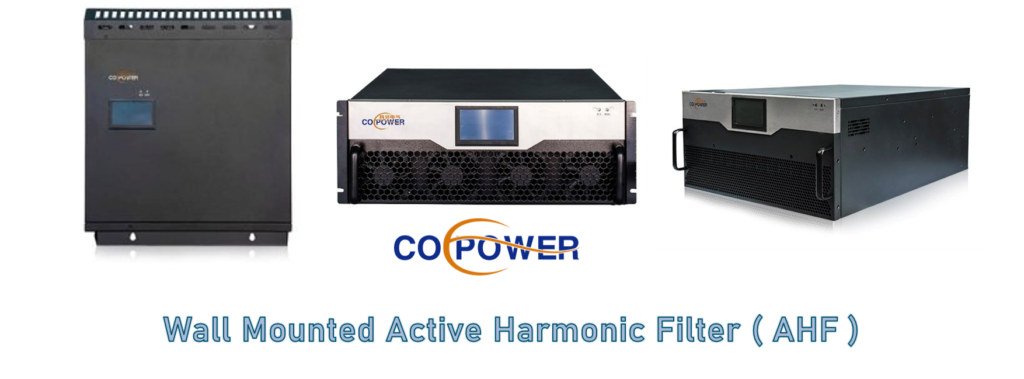

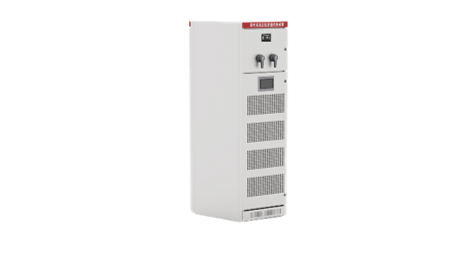

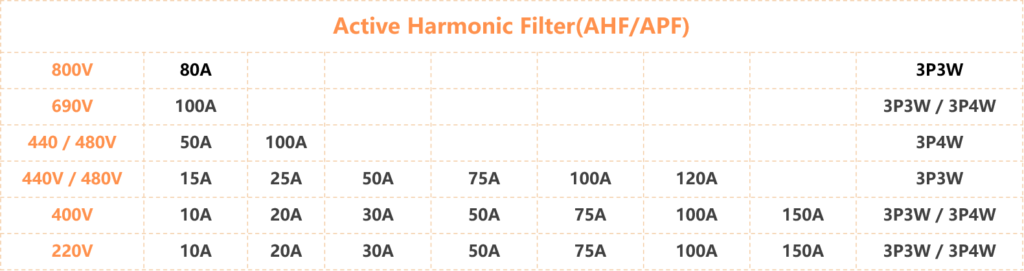

Active Harmonic Filter (AHF/APF)

Static Var Generator (SVG)

Voltage Solution

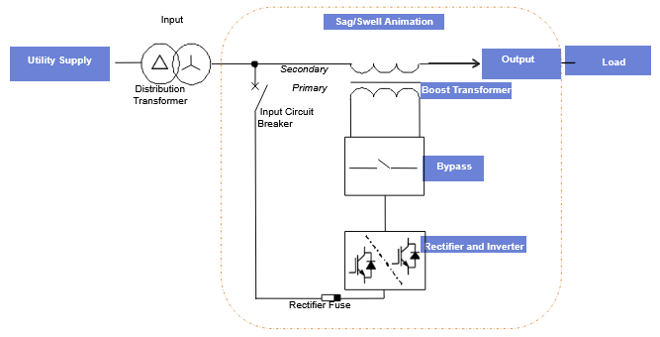

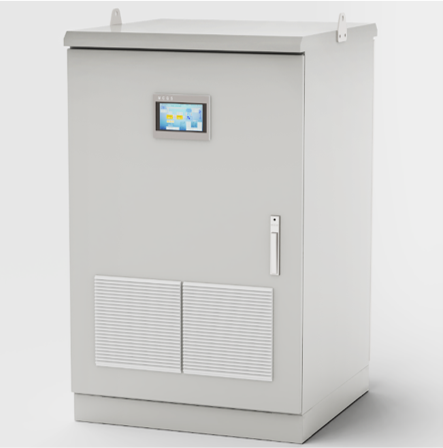

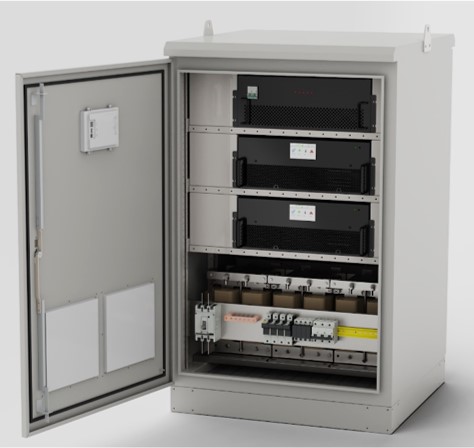

AVC - Active Voltage Conditioner

High Efficiency And Low Loss
Operate In Four Quadrants

Strong Overload Capability And Dynamic Response Capability
No Energy Storage Components

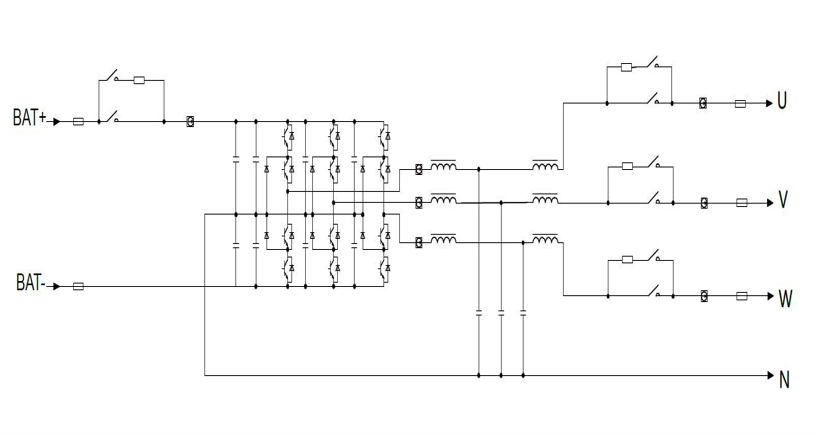

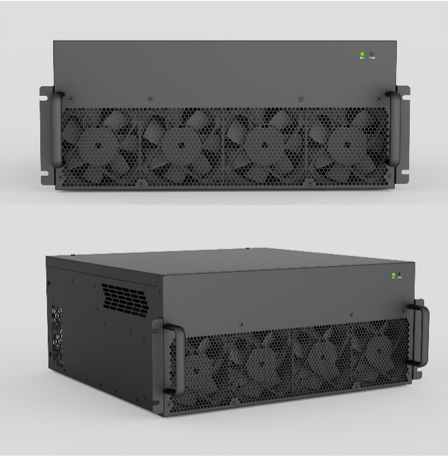

PCS – Power Converter System

Integrated Function
Easy Installation

High Efficiency
Stable Design

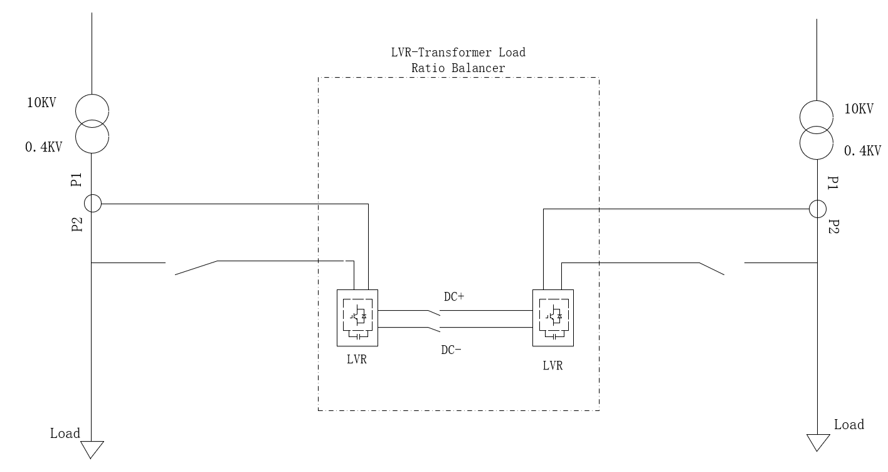

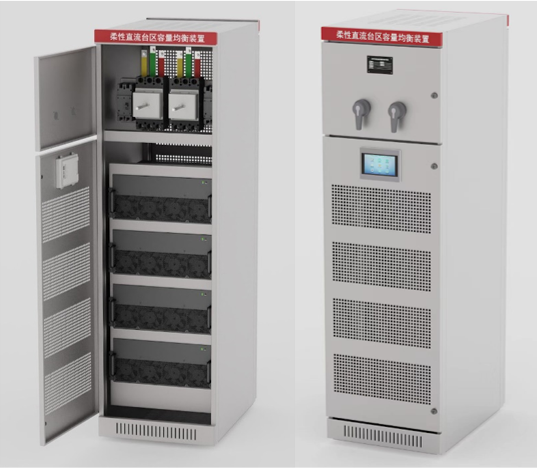

LVR - Transformer-Load Ratio Balancer

Advoid Transformer Overload
Balance Transformer input

Enchancing Distributed Energy Access
Improved Power Quality

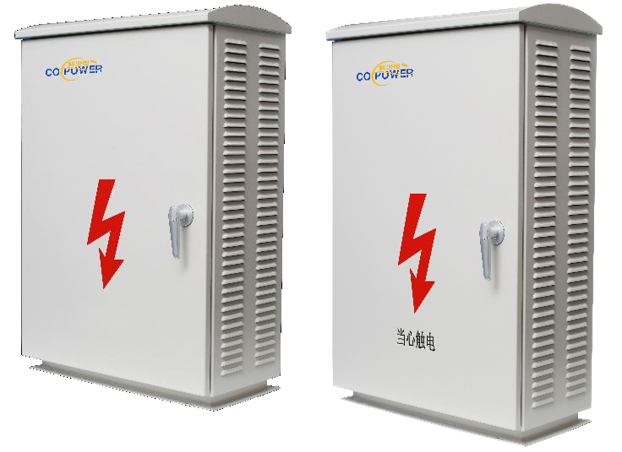

LVR - End Voltage Buck-Boost

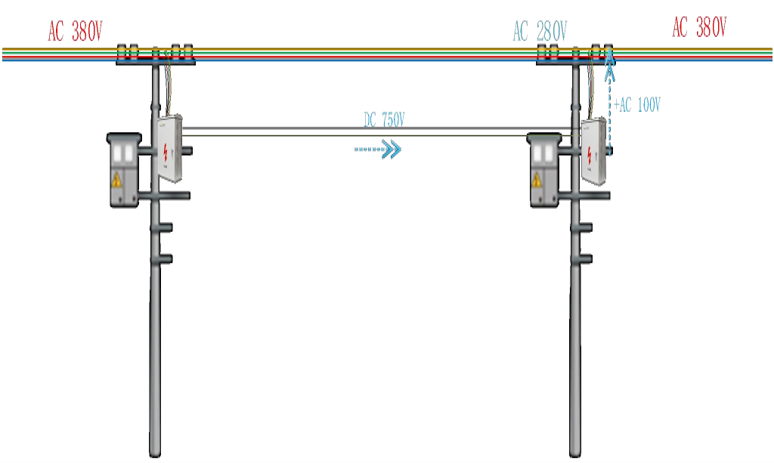

Rectifier (AC/DC)            Inverter (DC/AC)

Keep System Voltage Stable
Improved Power Quality

Effectively Control the Voltage Drop
Reduce Cable Loss

Our Business Scope

60+  Countries, 30,000+  Projects

Our Awards

  • University-Enterprise Cooperation Authorization
  • Power quality Standard Drafting
  • 34 Patents
  • 12 Copyrights
  • TUV LVD&EMC Certificates

Active Harmonic Filter (AHF)

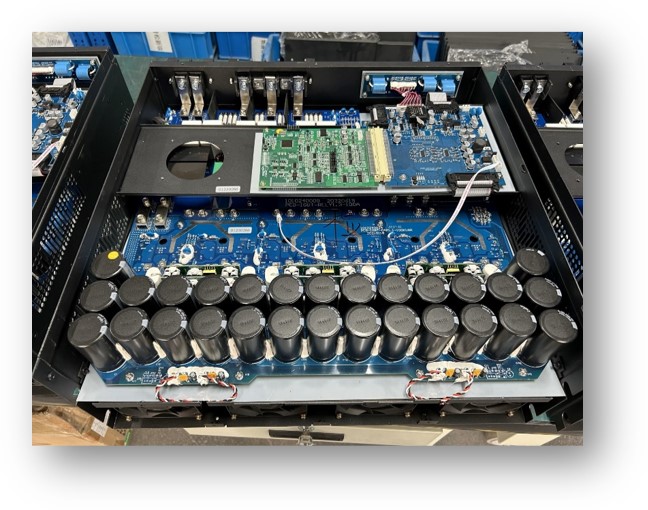

Static Var Generator adopts the hardware structure of FPGA, and the components are of high quality. Thermal simulation technology is used for thermal design of the system, and multi-layer PCB circuit board design ensures reliable isolation of high and low voltage, which provides guarantee for system safety.

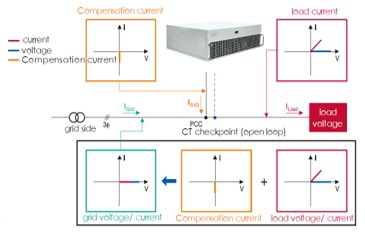

SVG (Static Var Generator) uses IGBT to control the value and phase of AC voltage of inverter, so as to serve the purpose of reactive and harmonic compensation. SVG can realize fast compensation for reactive load, and achieve very high compensation precision. Our SVG adapts the new technology of 3-level, more reliable and high performance. SVG is currently the best solution in reactive power control filed. SVG is faster (within 10ms), its compensation precision is high (power factor over 0.99), the compensation method is flexible (SVG can compensate both inductive reactive power and capacitive reactive power), and SVG also has the function of active filtration of harmonic current. Rolling mill, Arc furnace, Converter, Blaster furnace, Transmission system, Frequency converter, High power supply, UPS, Elevator,  Super press, Cutting, Numerical control machine,  Arc lamp, Halogen lamp, Air conditioner.

SVG Features

SVG could balance load between phases and unloaded neutral wire for input voltage connection system such as 3P3W and 3P4W. Therefore, it will be a perfect solution with applications having reactive power requirements along with unbalanced loads, which is the case with the electricity distribution in rural areas, some industrial applications and much more.

  1. Supports 15 compensation modes with any priority, such as harmonic, reactive power, imbalance and hybrid compensation.
  2. IGBT and FPGA chips are reliable brands.
  3. Effectively control the temperature rise of the equipment.
  4. Adapt to the harsh natural environment and power grid environment.
  5. Three level topology, small size and high efficiency.
  6. FPGA architecture, high speed computing power.
  7. Strong algorithm, fast response and accurate compensation.
  8. Provide customized services for structure, software, hardware and functions.

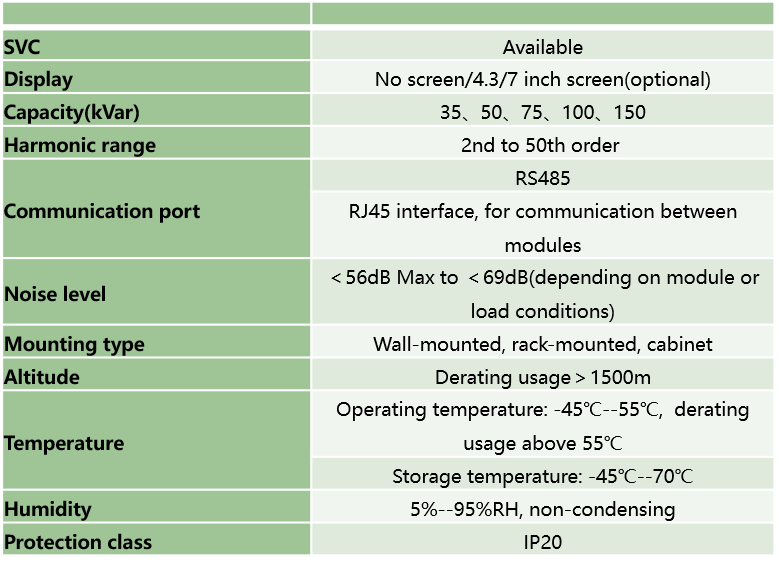

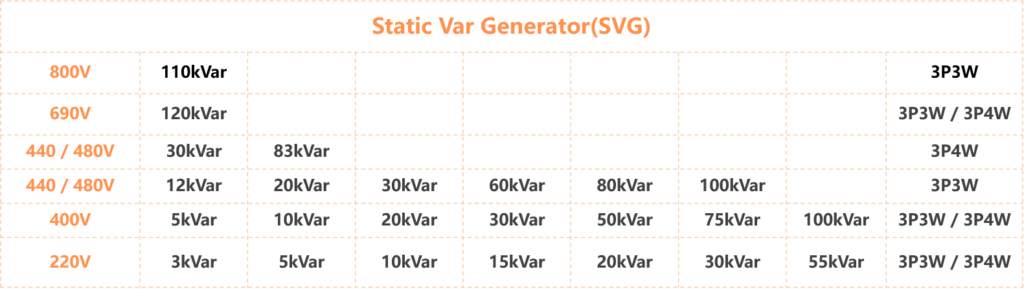

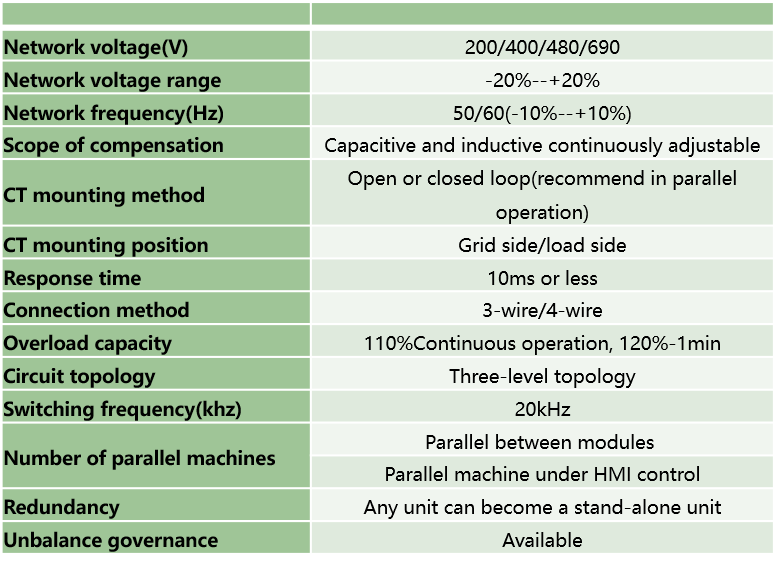

SVG Specification

SVG (Static Var Generator)

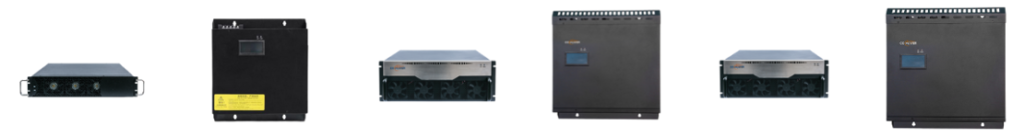

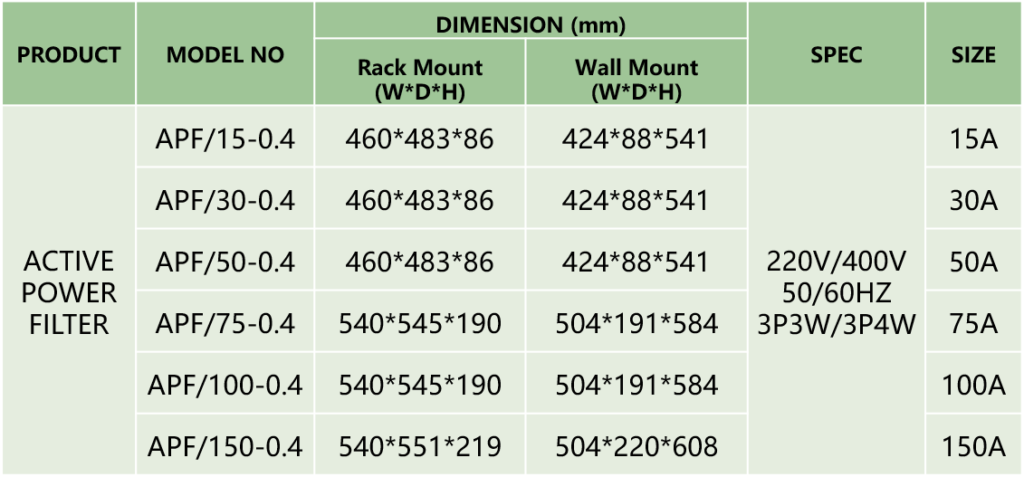

APF Dimension

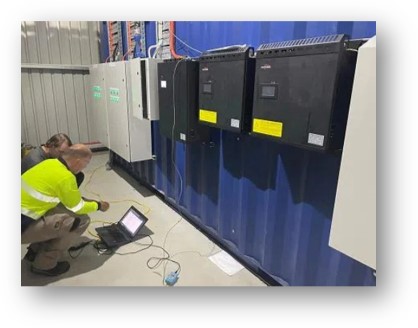

SVG Application

SVG must the most ideal reactive power compensation device :

  1. All types of industrial installations
  2. Equipment using variable speed drive (VSD)
  3. Arcing equipment: electric arc furnace (EAF), ladle furnace (LF), and arc welding machine
  4. Switching power supply: computer, TV, photocopiers, printer, air conditioner, PLC
  5. UPS system
  6. Data centre
  7. Medical equipment: MRI scanner, CT scanner, X-ray machine, and linear accelerator
  8. Lighting equipment: LED, fluorescent lamp, mercury vapor lamp, sodium vapor lamp, and an ultraviolet lamp
  9. Solar inverter and wind turbine generators

Energy Quality Analyser

Analyse software package allows you to compare multiple data points over time to build a complete picture of energy usage, wich is the first step to reduce the cost of your energy bill.

  • Optimized user interface: Quick, guided, graphical setup ensures you are capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
  • Bright, colour touch screen: Perform convenient in-the-field analysis and data checks with full graphical display

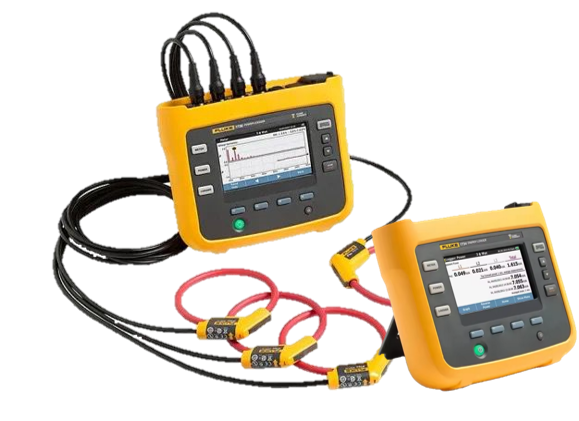

  • EU/US Version Three-Phase Electrical Energy Logger with Fluke Connect (includes current probes)
  • Energy studies: Full range of electrical power and energy parameters
  • Load studies: Simple current only logging for load sizing
  • Comprehensive logging: More than 20 separate logging sessions can be stored on the instruments
  • Optimized user interface: Capture the right data every time with quick, guided, graphical setup and reduce

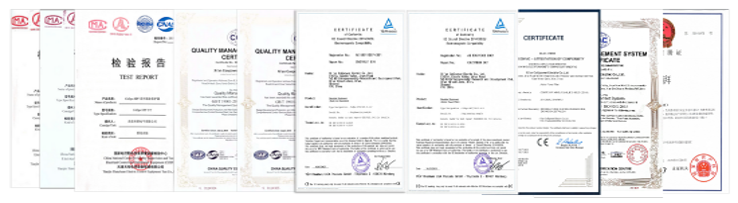

Certificate

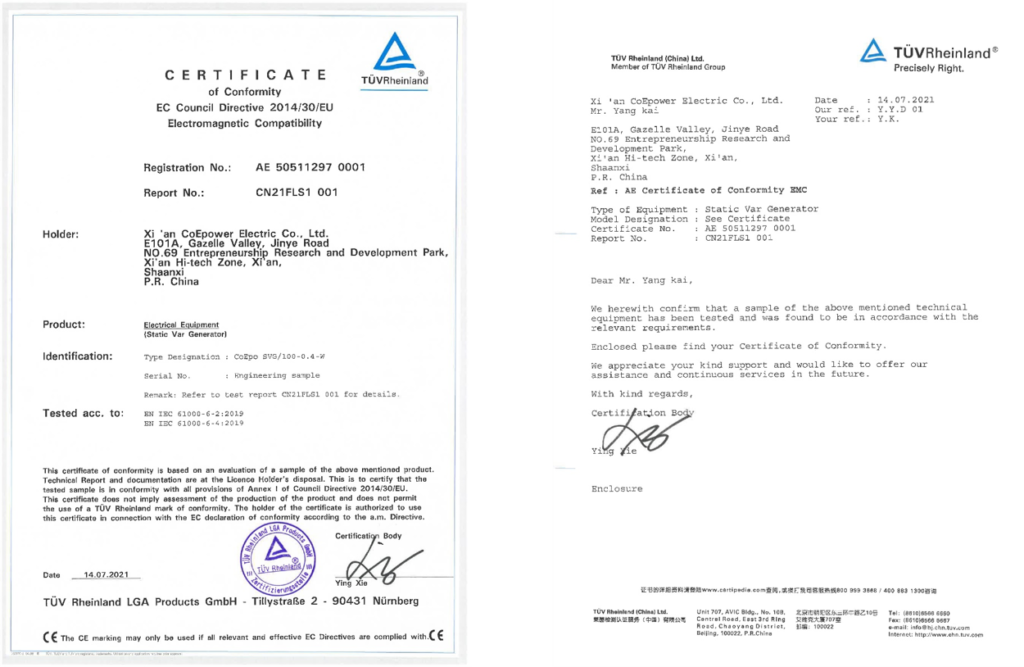

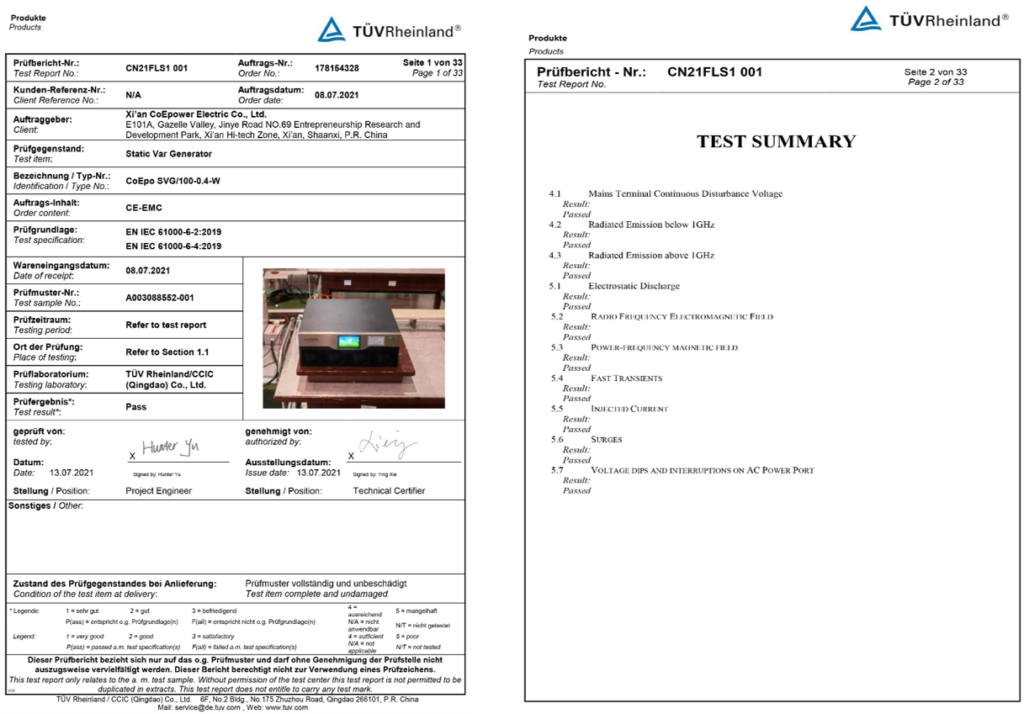

SVG CE-EMC

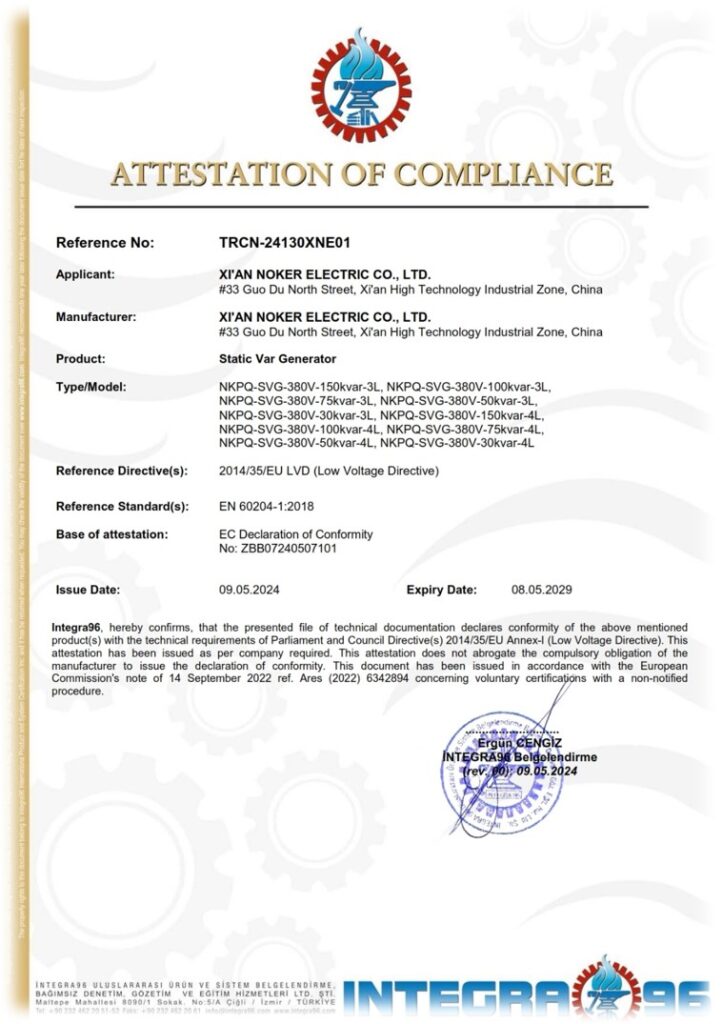

AHF CE-EMC
