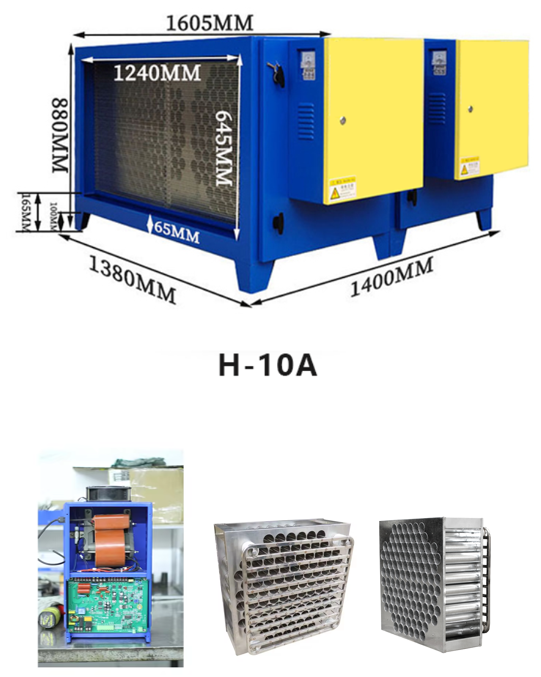

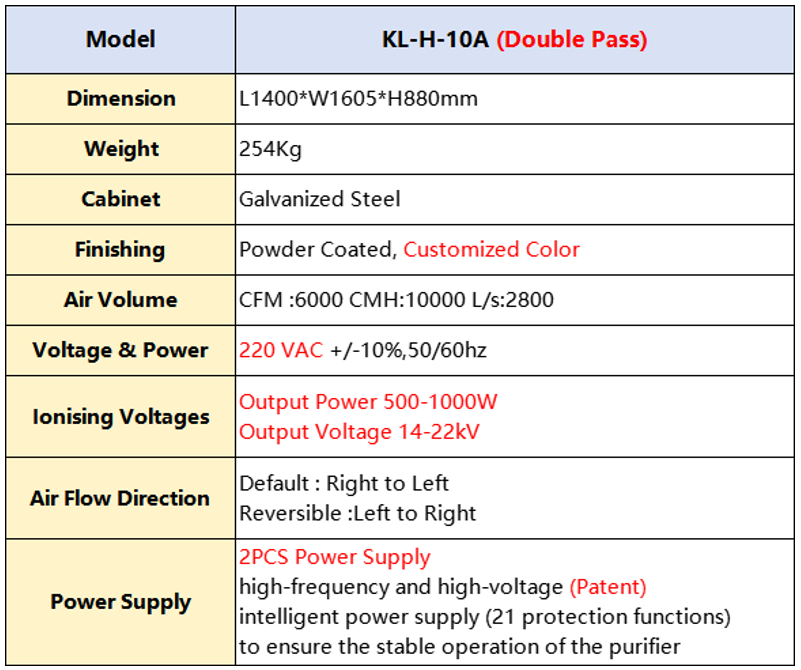

Model H10A

Power Supply/ Filter Cell

Power Supply (patent)

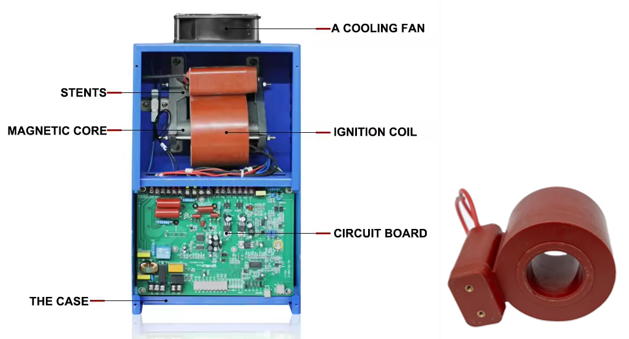

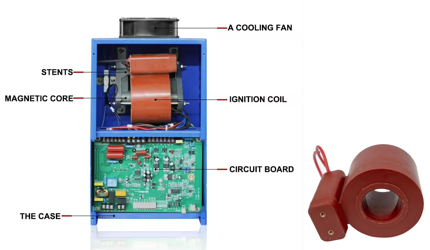

high-frequency and high-voltage intelligent power supply, which has 21 protection functions to ensure the stable operation of the purifier

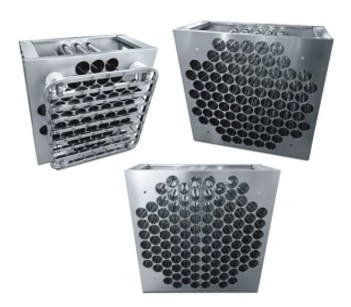

Honeycomb filter cell

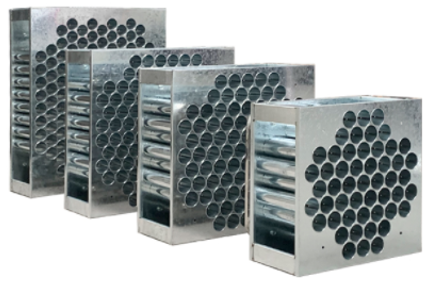

Honeycomb Cell – 51/88/110/146 Round, each 52mm tube size

  1. Low wind resistance
  2. Low energy consumption
  3. Easy cleaning
  4. Long cleaning cycle

Honeycomb filter VS Plate filter

Honeycomb filter cell

Honeycomb Cell – 51/88/110/146 Round, each 52mm tube size

  • Low wind resistance
  • Low energy consumption
  • Easy cleaning
  • Long cleaning cycle

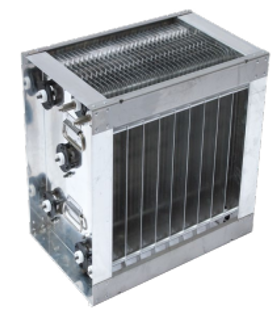

Plate filter cell

  • Distance between plates is small only 5-8mm Oil fumeadsorption space is small.
  • After oiscale adsorption to a certain deqree, Partial discharge/arcing pulling/ignition. Cleaning cycle is short.
  • The plate board will be deformation.

Building Project Cases

1. What is Electrostatic Precipitator(ESP)

Electrostatic Precipitator (ESP) HS Code: 8421399090

An electrostatic precipitator is a type of filter that uses staticelectricity to remove oil fume from exhaust fumes before it exit.

The core part of the ESP is the electrostatic filter, The honeycomb structure electrostatic filter which is charged
with a high voltage by power supply. Oil fume particles pick up a charge when they pass the charged electrodes. Then the charged oil fume particles are attracted to oppositely charged collecting cylinders.

As a result,85%-95%of oil fume will be moved.

2. Working principle of ESP

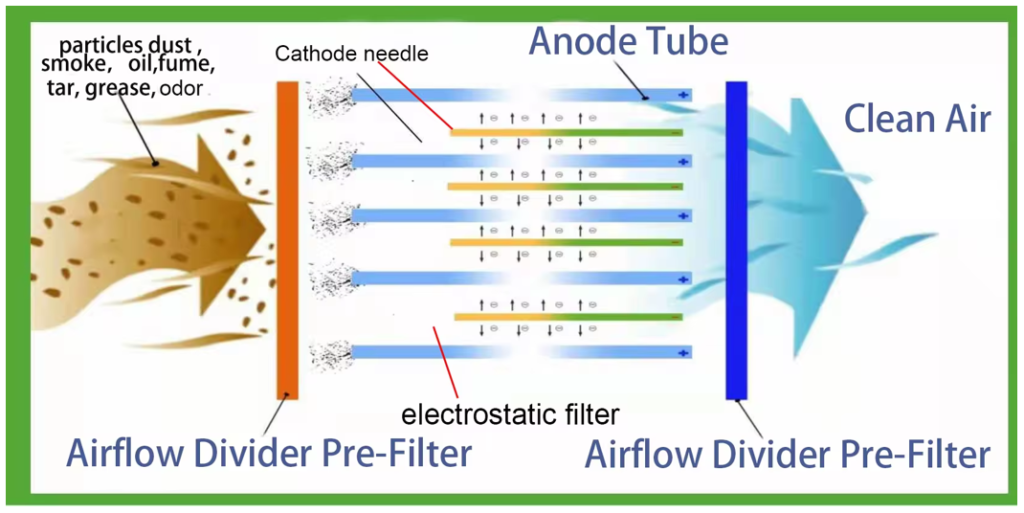

The positive ionization technology is used to release anions through a high-voltage arc.and the anions are combined with the ions in the gas to achieve the effect of purifying the oilfume and exhaust gas.

3. Application of ESP

Remove oil, fume, dust, oil fume, smoke, dust, smell

Kitchen and Food Smoke

  1. Kitchen Air Purification
    Hotel/ Building Purifier System/ Restaurant/ Canteen/ Food factory
  2. Coffee Roasting Air Purification

Industry

  1. Welding Workshop
  2. Plastic Granulation Factory
  3. Sealing Strip Factory
  4. Rubber Factory
  5. Boiler Dust Purification
  6. Salughter House and others

4. Advantage of ESP

1. Safe and efficient:
Performance with low power consumption and high efficiency, adaptive adjustment of high-voltage output power. With 21 protection functions such as arc pulling, ignition, high-voltage open circuit, high-voltage short circuit, overcurrent, overload, and overheating, ensuring the safe and stable operation of the purifier.

2. Intelligence:
With intelligent modules, it can adjust the high voltage input according to the concentration of flue gas, electrostatic cell, and oil contamination of the electrical ceramic insulator, ensuring that the purifier is always at the highest purify efficience

3. Easy installation:
Modular structure can be quickly assembled and disassemble, different combinations can be choosed according to the installation space

4. Durable:
Galvanized coated with high-temperature painting treatment or Stanless Steel, it can be installed indoor and outdoor, corrosion resistant, durable, and elegant appearance

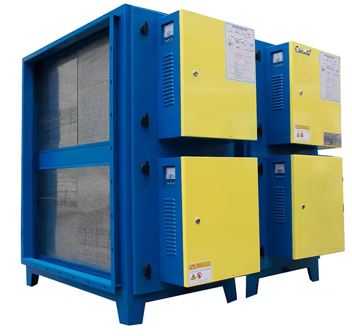

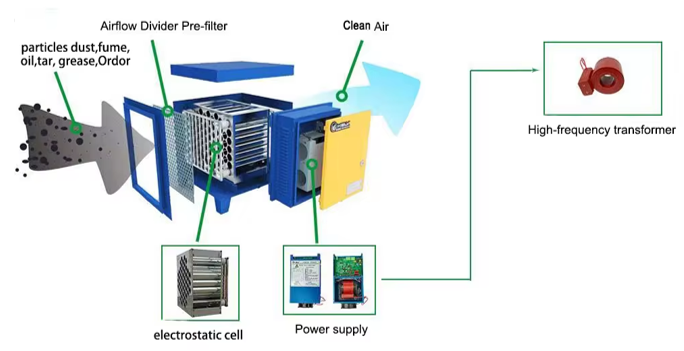

5. Structure of ESP

※ Housing
※ Airflow Divider Ventilation Net
※ We are high-frequency and high-voltage
intelligent power supply, which has 21
protection functions to ensure the stable
operation of the purifier (our own patent)

※ Use honeycomb electric field structure

Honeycomb Cell – 51/88/110/146 Round, each 52mm tube size

  1. low wind resistance
  2.  low energy consumption
  3.  easy cleaning
  4.  long cleaning cycle

6. How to clean filter cell

  1. Oil Mist Smoke: NaOH + Water, 30-40℃ temperature, soak around 20 minutes.
  2. Only Dust: water / air cleaning directly

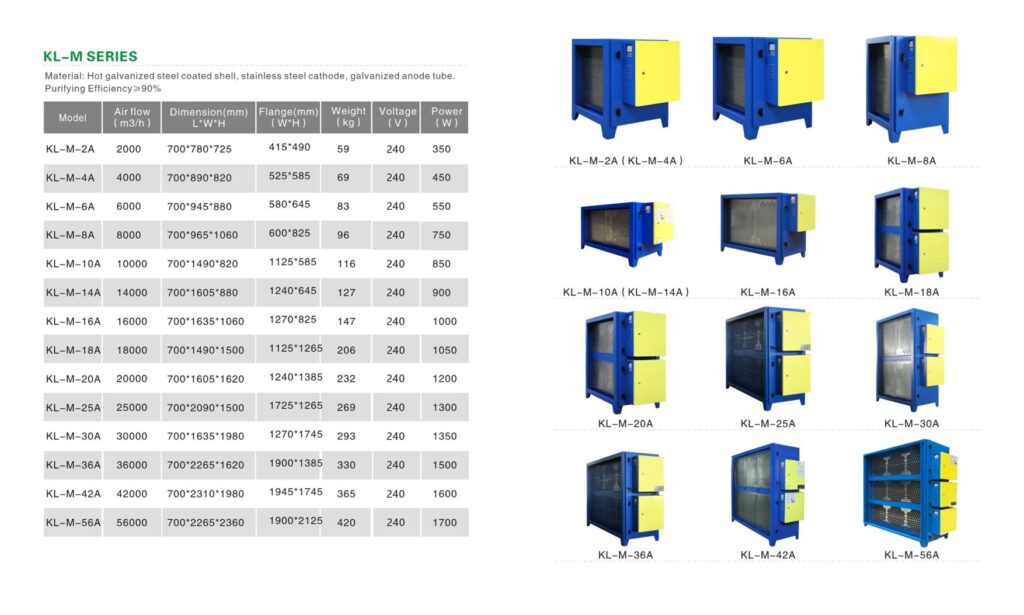

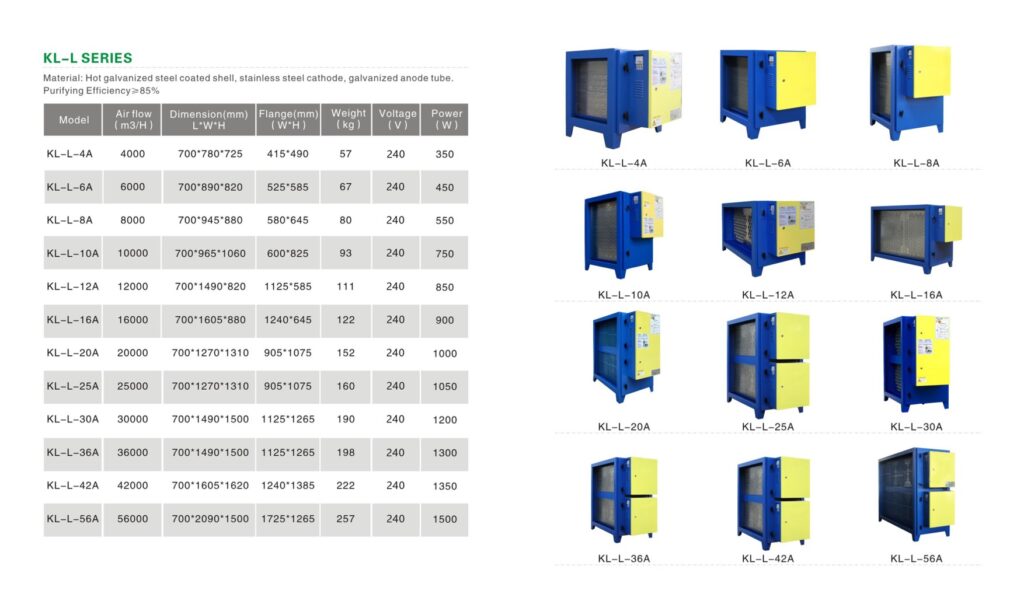

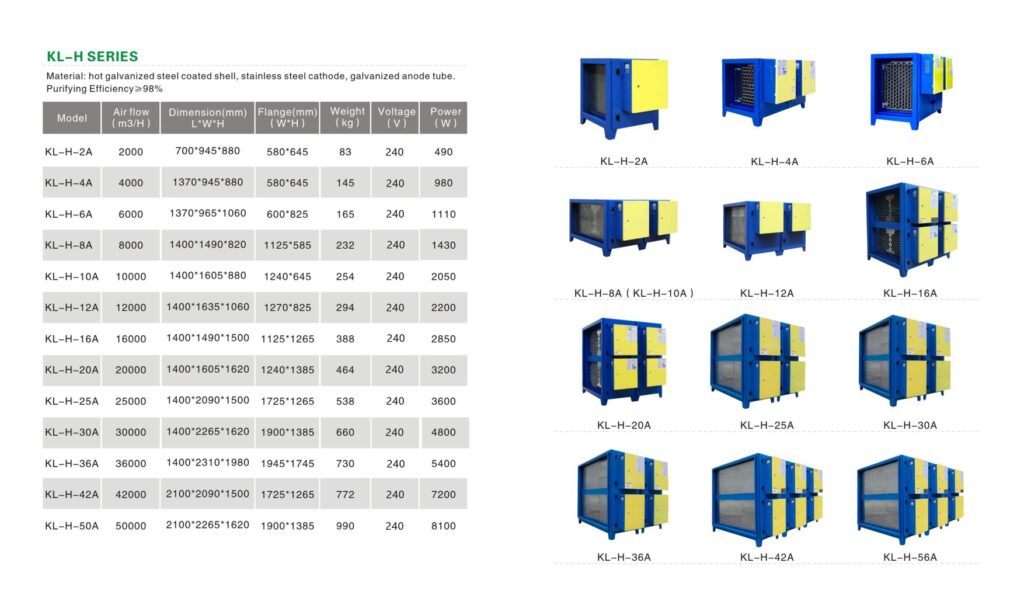

7. ESP Series

8. How to choose ESP L/M/HSeries

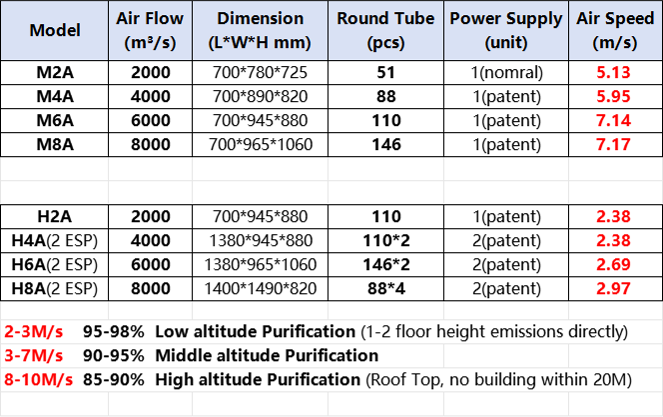

1. Air speed can help choose suitable model series for customers
2. Cooking food type can help
    – Light oil smoke – L/M series
    – Heavy smoke: BBQ/ Fried food/ Spicy food – M/H series

8. Kitchen installation design/ support free customized deisgn

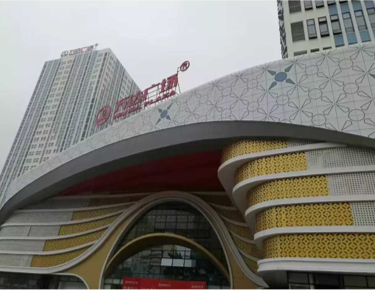

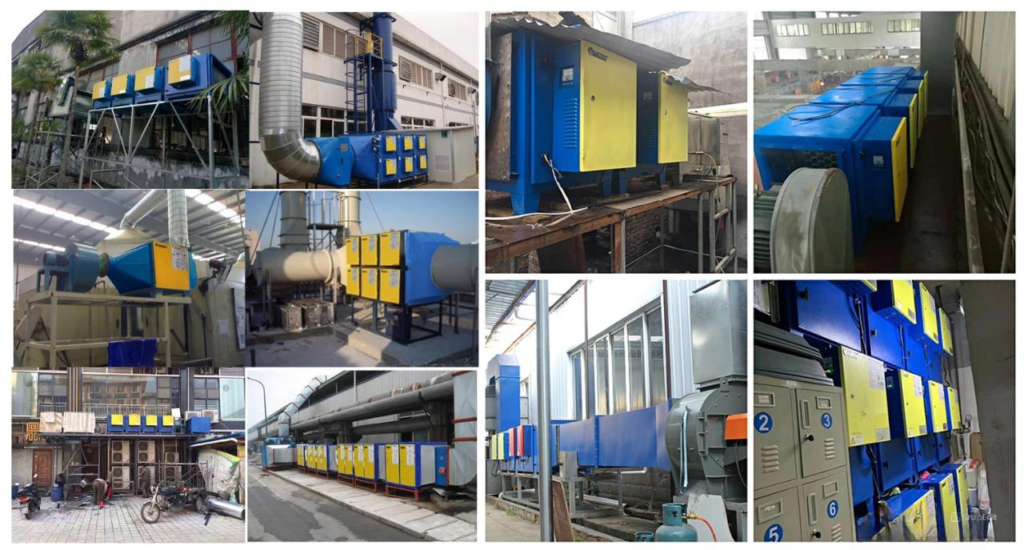

Cases: Visit Purificaton System in factory

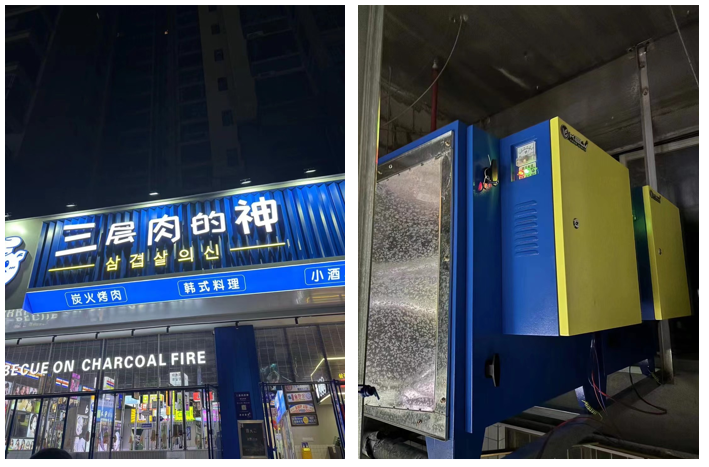

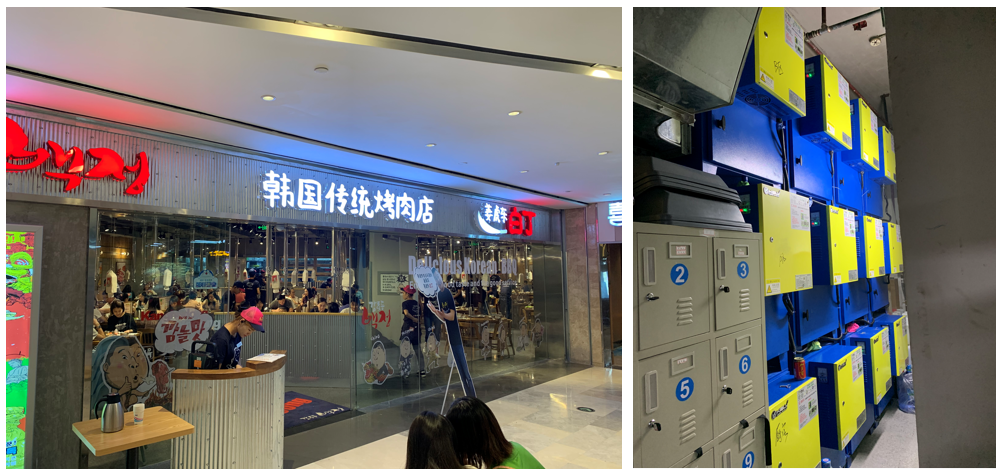

Korean BBQ Restaurant

Purifier System​

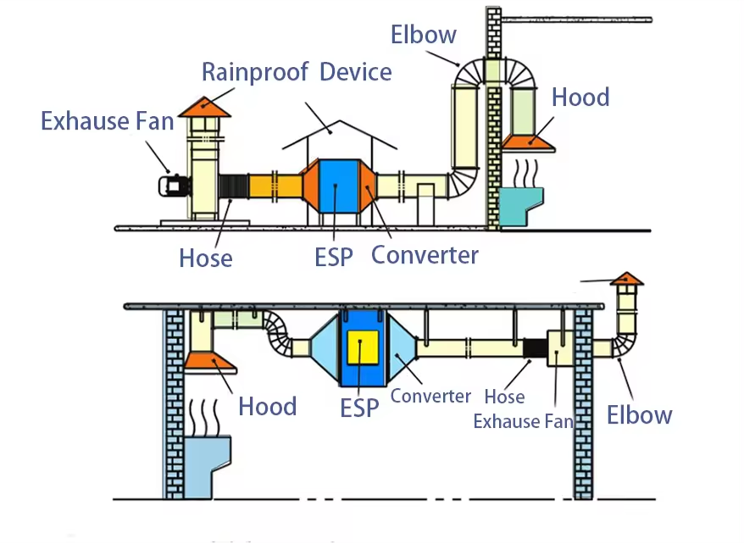

ESP for oil smoke purifier

Case 1:Popular Korean BBQ Restaurant
Case 2: Korean Charcoal BBQ Restaurant
(large smoke can’t solve before open, our ESP help urgent solution in 2days!)

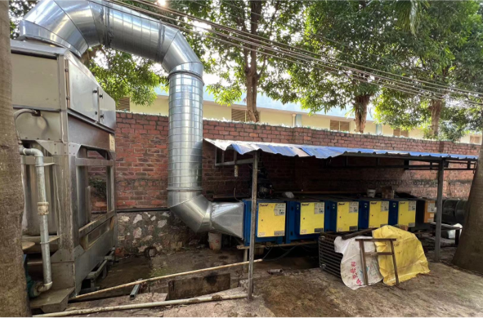

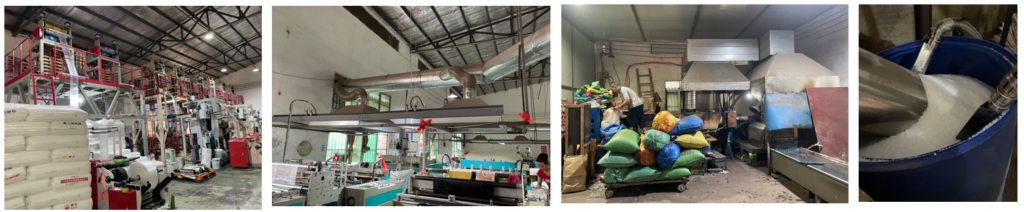

Plastic Granulation Plant

Purifier System

Water Spray Tower + ESP + UV

1 Unit: KL-XLT10A (removal dust)
5 Unit: KL-L-12A (removal smoke dust)
1 Unit: KL-UV-12A (removal smell)

From 2019 to 2024, still working now

Steel Plate Group Factory

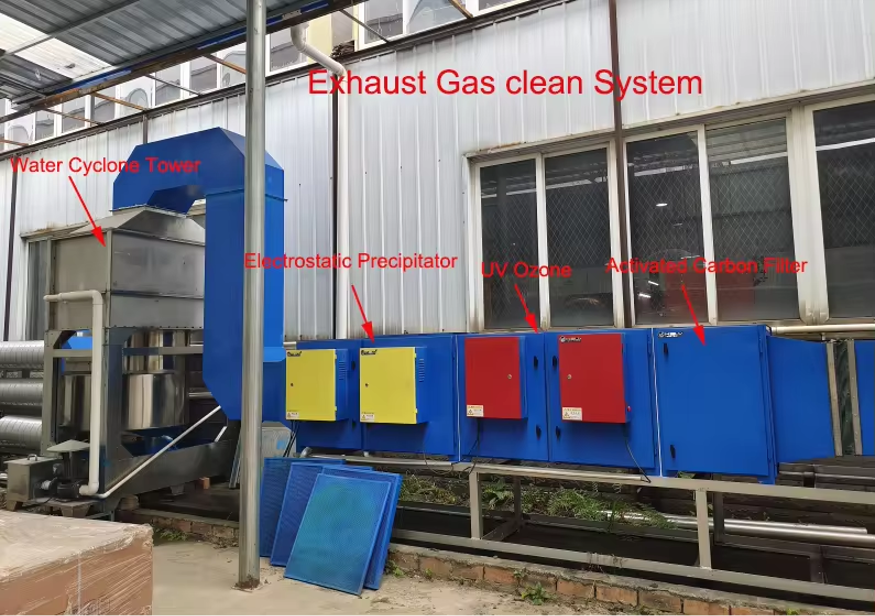

Purifier System

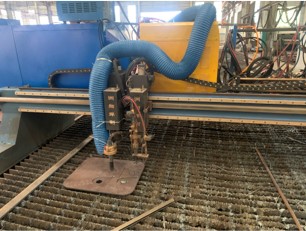

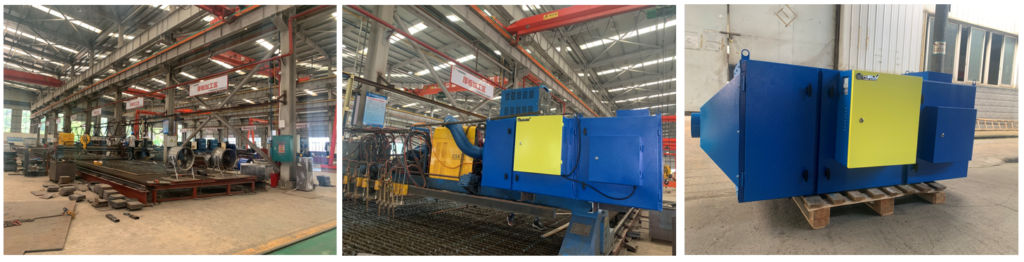

Metal Laser Cutting Equipment Smoke Dust Purifier ESP

Filter with reducer union solve well
From 2021 to 2024, still working now
